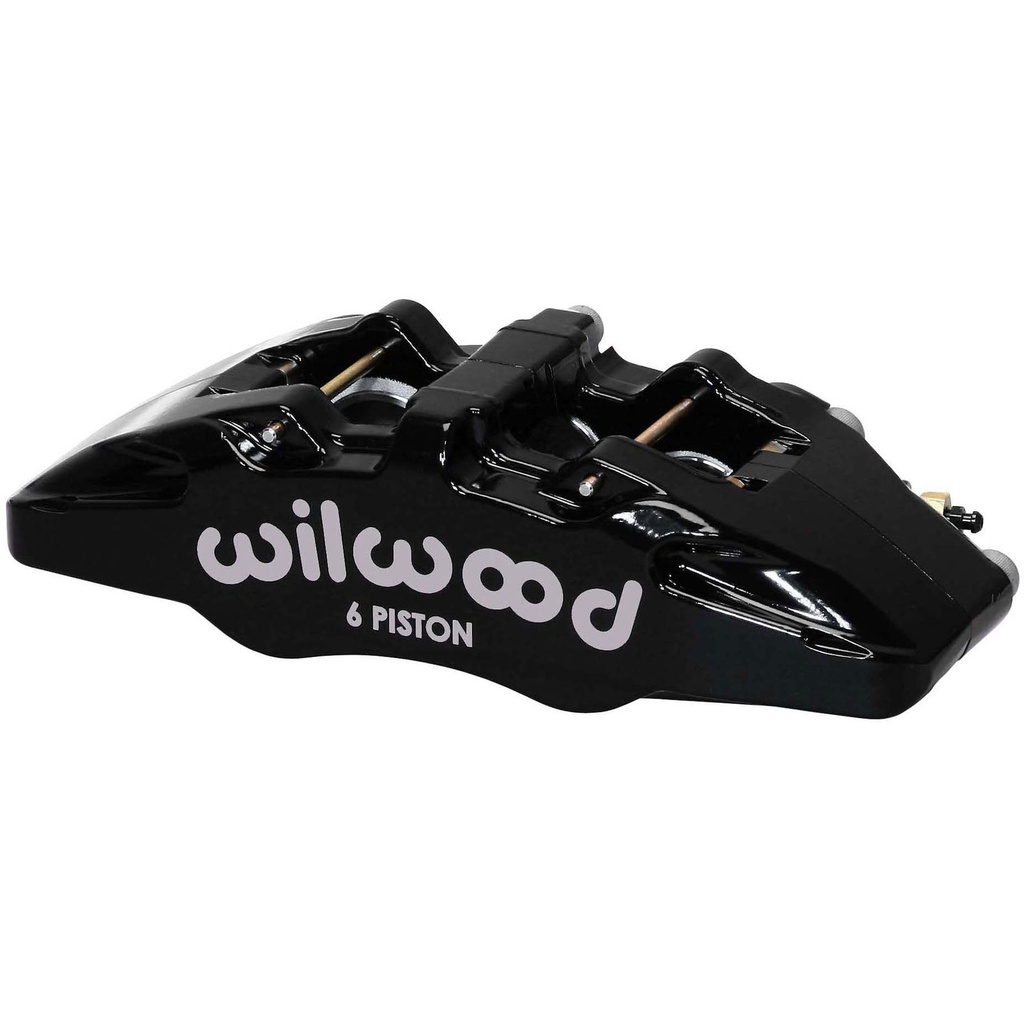

The Dynapro 6A from Wilwood is an ultra high performance universal 6 piston brake caliper designed using pure-bred racing technology to produce a highly versatile caliper suitable for road, competition or custom use. The Dynapro 6A is the stiffest and strongest caliper in the Dynapro range and that is due to a reinforced triple bridge construction with 5 high strength steel bridge bolts. These features provide a more positive pedal feel with increased braking response and better driver feedback.
The pistons in this brake caliper range have different bore sizes. This allows for a pressure differential between the leading and trailing edge which keeps the pad face flatter against the rotor face and prevents uneven pad wear.

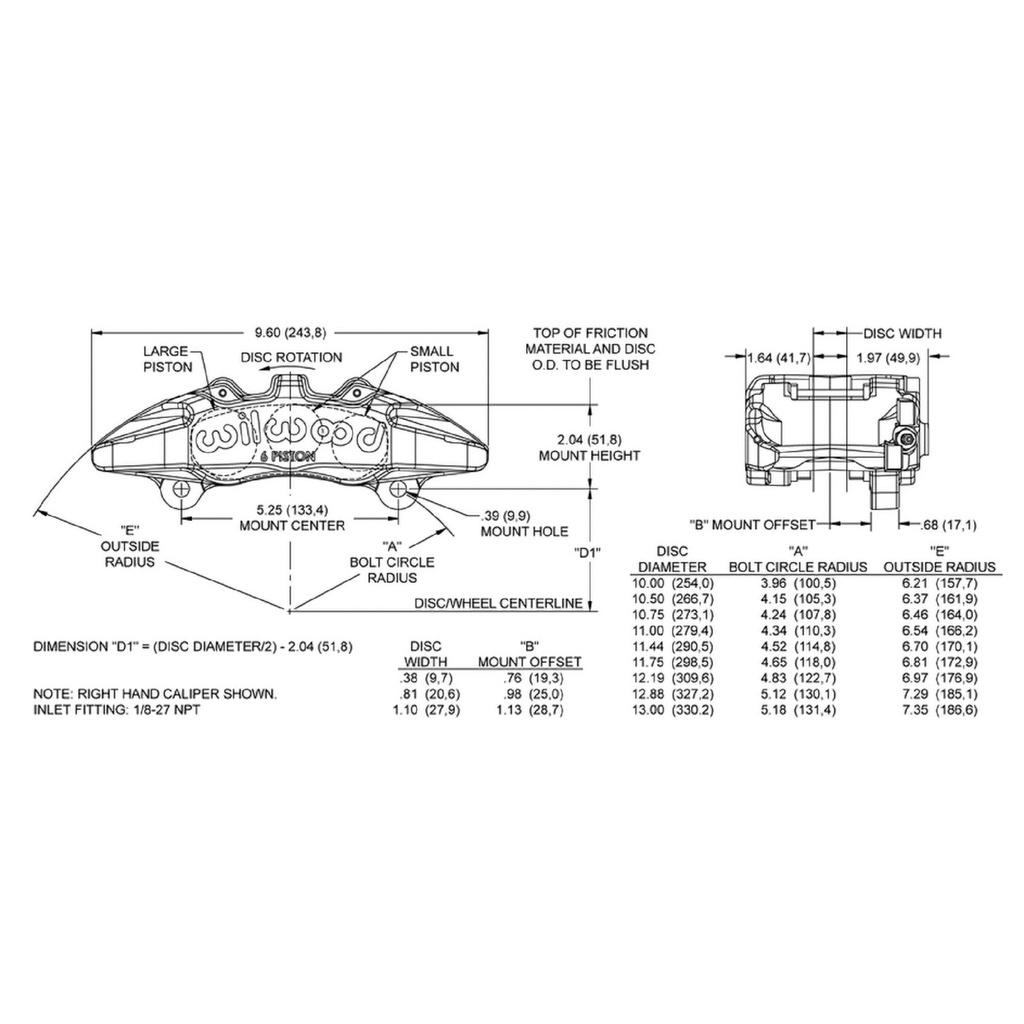

SPECIFICATION
Suitable Rotor Size - 10"-13" (254-330mm)
Number of Pistons - 6
Piston Material - Stainless Steel
Pad Area - 7.3"
Mounting Type - Lug
Inlet Port - 1/8" NPT
Mounting Centre - 5.25"
Weight - 5.3lb
The Wilwood Dynapro 6A piston caliper is suitable for use on rotor sizes 10"-13" (254-330mm)
Calipers are handed and sold individually.

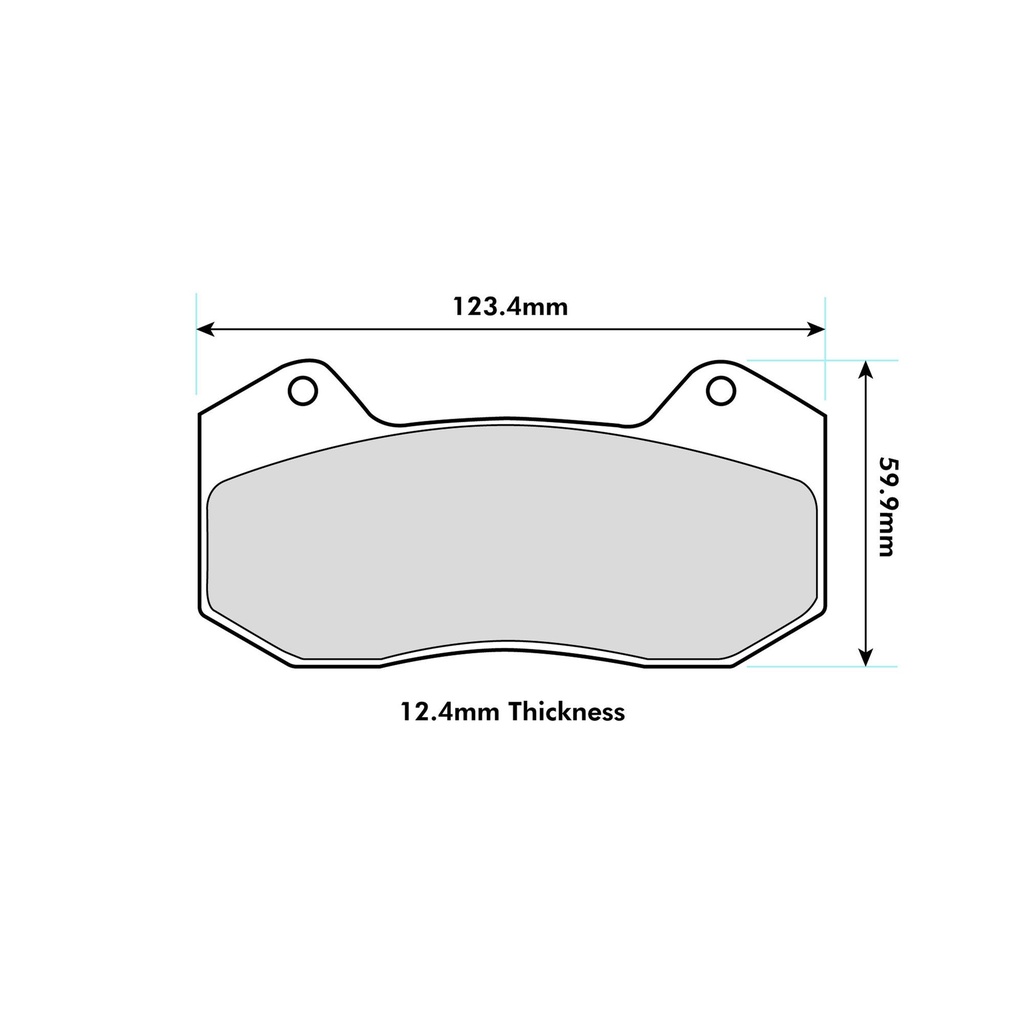

Please note: Brake pads are not included but are available to purchase from our Motorsport brake pad category.
