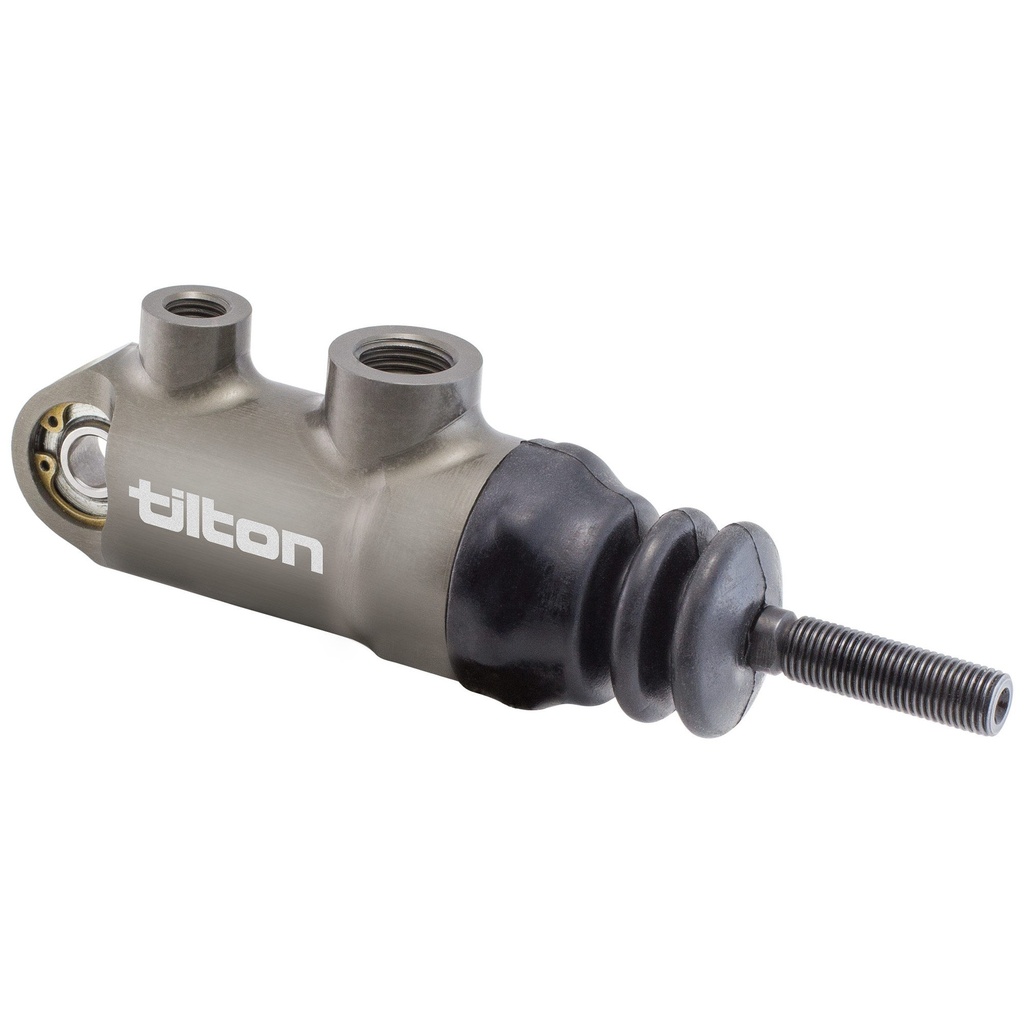

The Tilton 78 series master cylinder are a lightweight and compact design suitable for use on Tilton 800 and 900 series pedal assemblies. A precision spherical bearing rear mount and one piece piston / pushrod design eliminate side loading on the cylinder bore. This allows for more consistent and predictable braking.
- Several bore sizes available to allow a perfect match to your braking system requirements
- Internal friction coatings provide smooth operation and minimise wear
- Bore side loading eliminated for more consistent braking
- Hand built and blueprinted cut-off port travel
Tilton 78 series master cylinders are constructed from a billet aluminium body for weight reduction. Cylinders are hand built and blue printed for optimum performance and repeat ability in braking.
Specifications:
Outlet port: -3AN (3/8" UNF)
Inlet Port: -4AN (7/16" UNF). A male to male adaptor to -4AN is available separately
Pushrod: 3/8" UNF
Stroke: 26.9mm
