This Retainer Clip is perfect for when a light-duty safety lock fastener is needed. It is reusable, vibration resistant, quick and easy to fasten and remove.

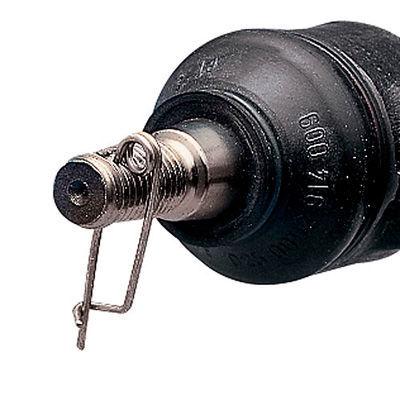

This Military Specification retainer is formed from 0.052"/1.32mm diameter spring wire with a high tensile strength. The grip capacity is 0.75"/19.05mm at a maximum depth of 0.15"/3.81mm. Meaning it can be fastened through a cross drilled hole in a 0.75"/19.05mm diameter shaft and up to 0.15"/3.81mm in from the tip of the shaft.
Due to the relatively small wire diameter, this clip should not be used in applications that would subject it to high shear loads.
Sold Individually.
