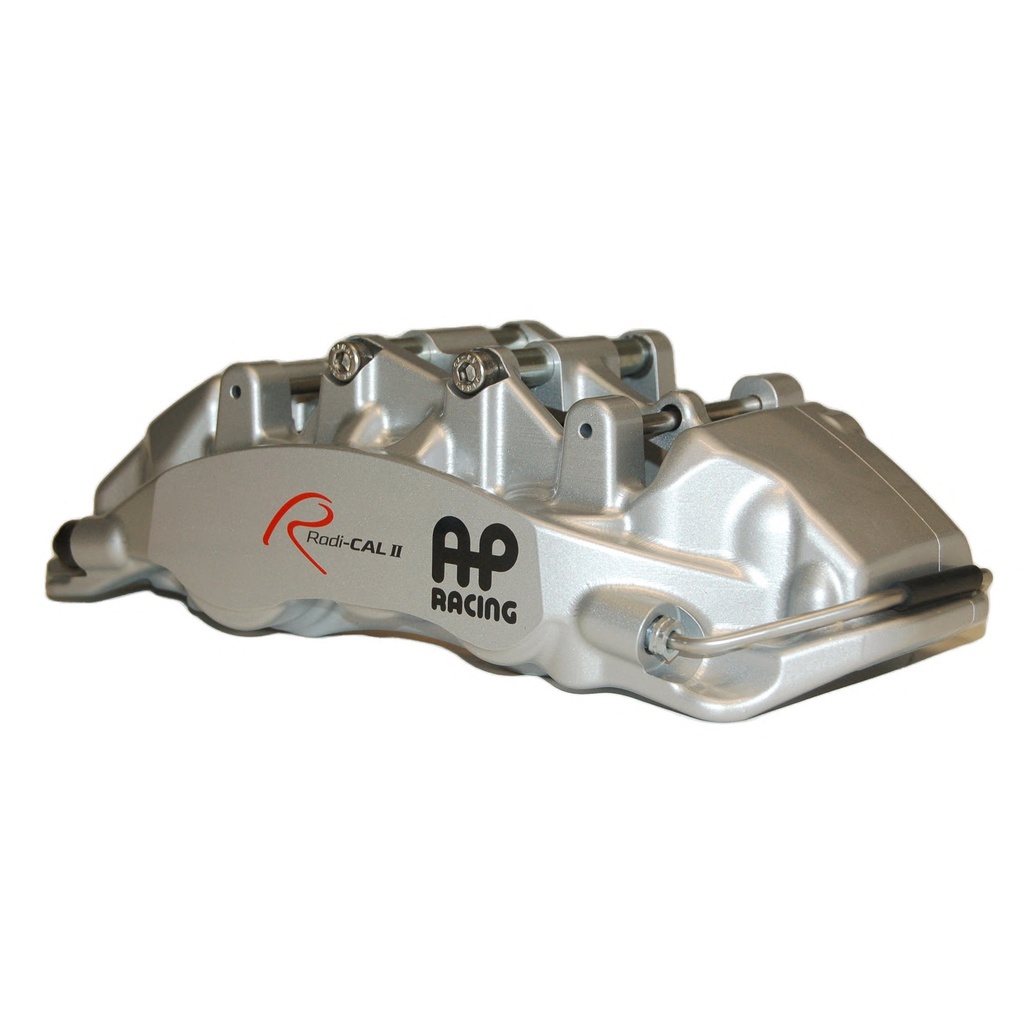

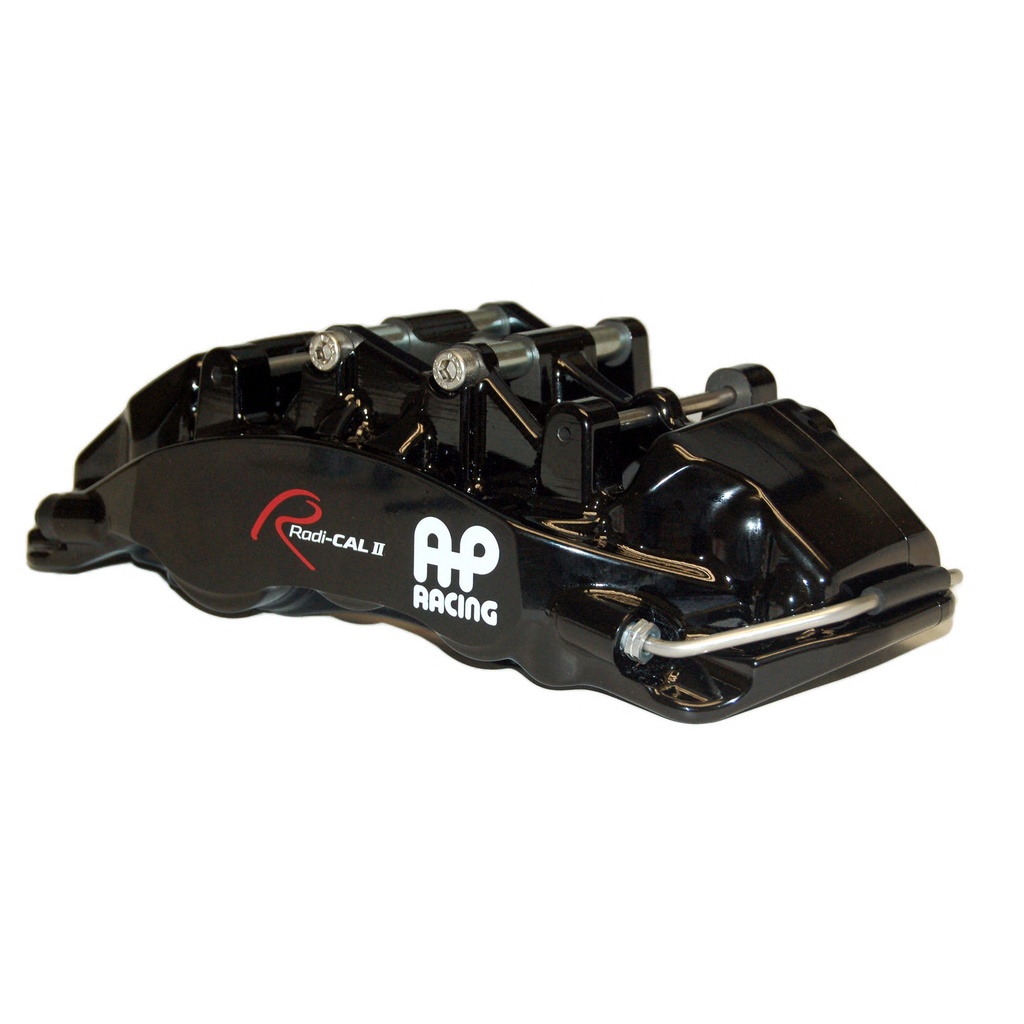

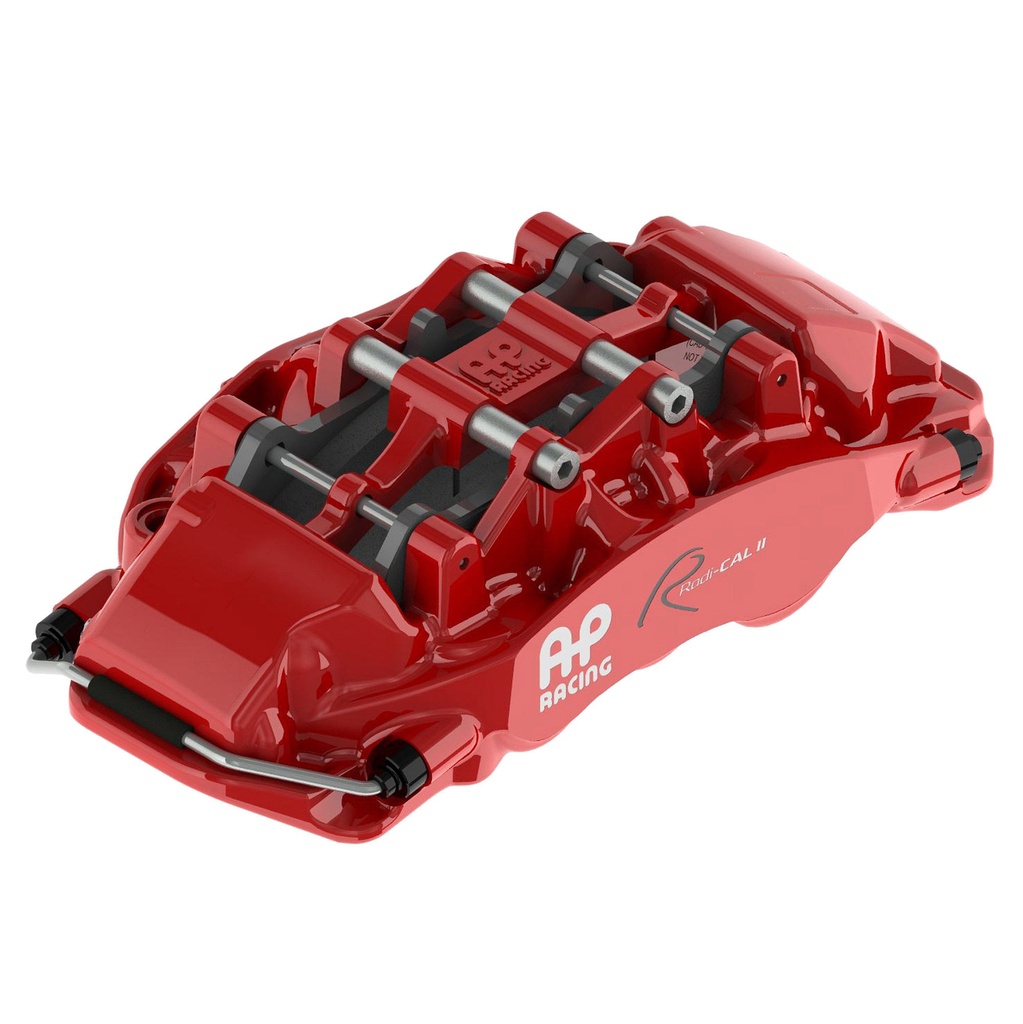

The CP9560 / CP9561 and CP9562 range of 6 piston World Radi-Cal brake calipers from AP Racing have been developed for front use on performance road vehicles fitted with large diameter discs (362-390mm). Manufactured from a 2 piece forged aluminium body with alloy pistons fitted with dirt seals to prevent contamination of the pistons and bores. The calipers benefit from an advanced anti corrosion paint finish for a long lasting great finish.
- Ideal for performance vehicles with large brake discs
- Fits over large disc sizes (up to 390 x 36mm)
- Alloy pistons with seals to prevent dirt ingress
- Anti rattle pad clips reduce noise
AP Racing CP9560 / CP9561 and CP9562 caliper ranges all share the same features apart from piston sizes
- CP9560 piston sizes - 31.8mm x 2 / 36.0mm x 2 / 41.3mm x 2, piston area - 62.5cm².
- CP9561 piston sizes - 31.8mm x 4 / 41.3mm x 2, piston area - 58.6cm².
- CP8560 piston sizes - 27.0mm x 2 / 31.8mm x 2 / 38.1mm x 2, piston area - 50.1cm².
| Min Disc Dia | 362mm |
| Max Disc Dia | 390mm |
| Disc Thickness | 34-36mm |
| Piston Dia | See details above |
| Piston Area | See details above |
| Inlet Port | M10 x 1 |
| Mount Type | Radial |
| Mounting Centes | 195mm |
| Mounting Offset | 49.5mm |
| Mounting Hole Dia | 12.1mm |
AP Racing CP9560 / CP9561 and CP9562 calipers are handed and sold individually
