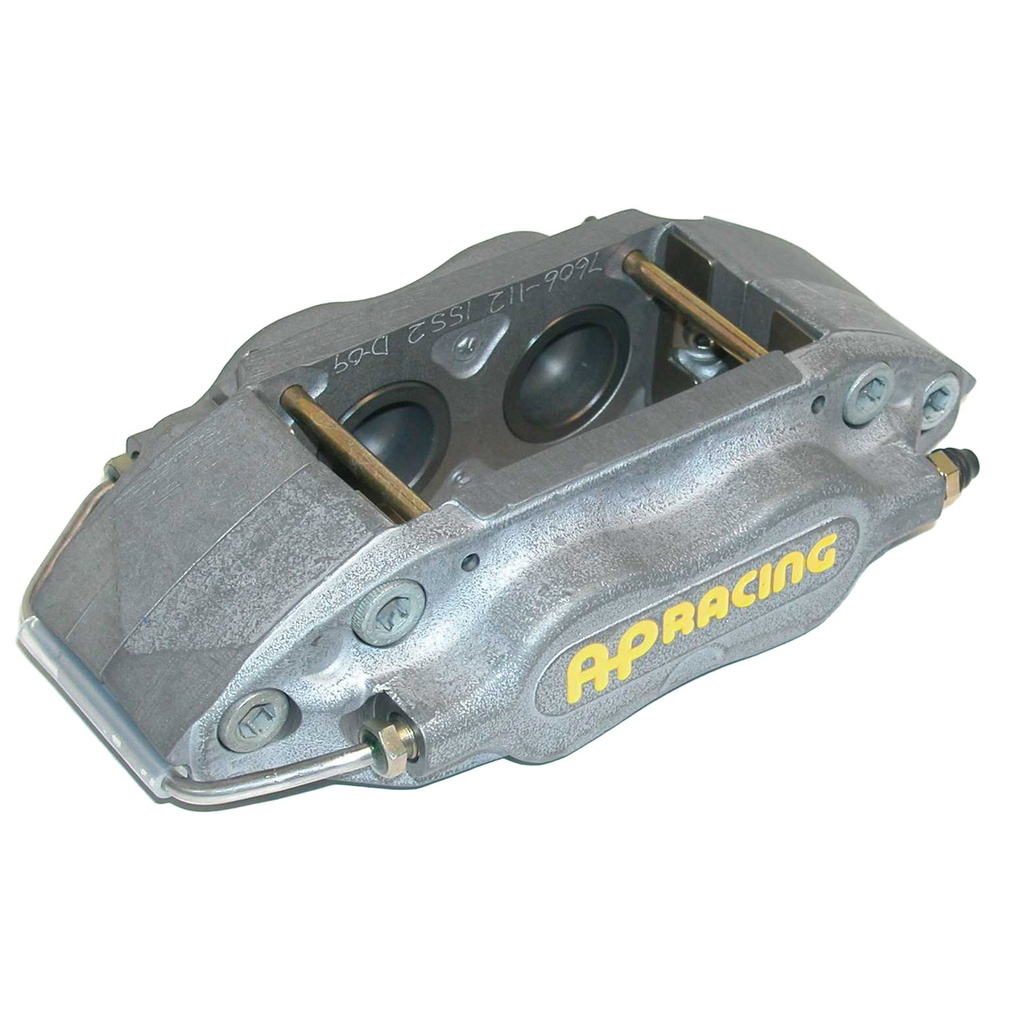

The CP7606 and CP7613 are a budget range of 4 piston cast aluminium brake calipers ideal for lightweight formula race cars. The 2 piece cast aluminium alloy body houses aluminium pistons and is fitted with stainless steel wear plates an pin pad retainers. Suitable for disc sizes 267-295mm diameter.
- AP racing quality but on a lower budget
- Ideal for lightweight formula race cars
- 2 Piece cast aluminium alloy body
- Aluminium pistons
- Stainless steel wear plates
AP racing CP7606 and CP7613 brake calipers share the same features apart from piston sizes:
- CP7606 piston size - 38.1mm x 4, piston area - 45.6cm²
- CP7613 piston size - 31.8mm x 4, piston area - 31.6cm²
Caliper Specifications
| Min Disc Dia | 267mm |
| Max Disc Dia | 295mm |
| Disc Thickness | 18-20mm |
| Piston Dia | See details above |
| Piston Area | See details avove |
| Inlet Port | M10 x 1 |
| Mount Type | Radial |
| Mounting Centes | 130mm |
| Mounting Offset | 37.25mm (CP7606 / CP7613-2/3/4/5) / 38.70mm (CP7613-6/7/8/9) |
| Mounting Hole Dia | 10.2mm |
AP Racing CP7606 and 7613 calipers are handed and sold individually
