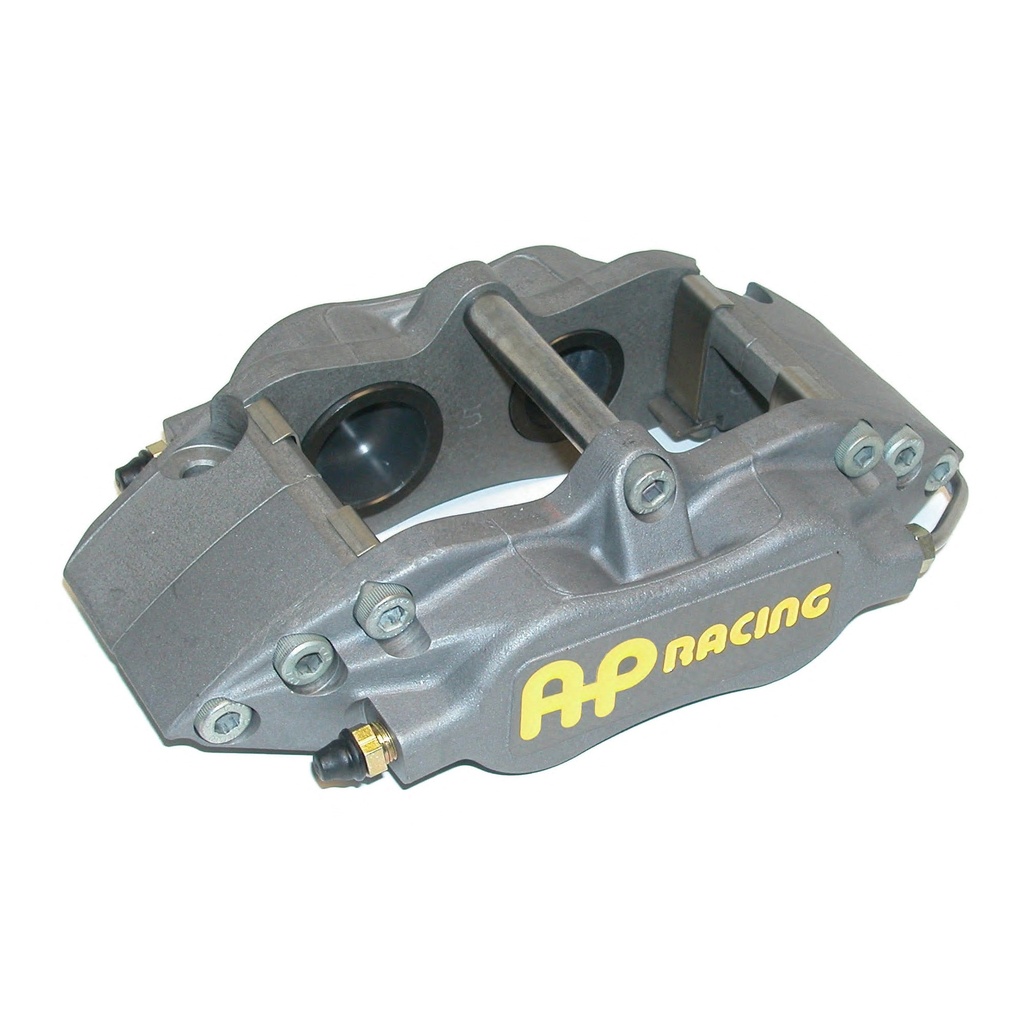

The CP4567 range of 4 piston cast aluminium brake calipers from AP Racing are ideally suited to lightweight sportscars and are able to fit under 13" diameter wheels. The 2 piece cast aluminium alloy body houses aluminium pistons and features a single bolt pad retainer.
- 2 Piece cast aluminium alloy body
- Capable of fitting under 13" wheels
- Suits 280 x 20mm or 280 x 25..4mm brake discs
- Single bolt pad retainer
Caliper Specifications
| Min Disc Dia | 280mm |
| Max Disc Dia | 280mm |
| Disc Thickness | 20mm / 25.4mm |
| Piston Dia | 34.9mm x 2 / 41.3mm x 2 |
| Piston Area | 45.92cm² |
| Inlet Port | M10 x 1 |
| Mount Type | Radial |
| Mounting Centes | 152mm |
| Mounting Offset | 30mm / 27.3mm |
| Mounting Hole Dia | 10.2mm |
AP Racing CP4567 calipers are handed and sold individually.
