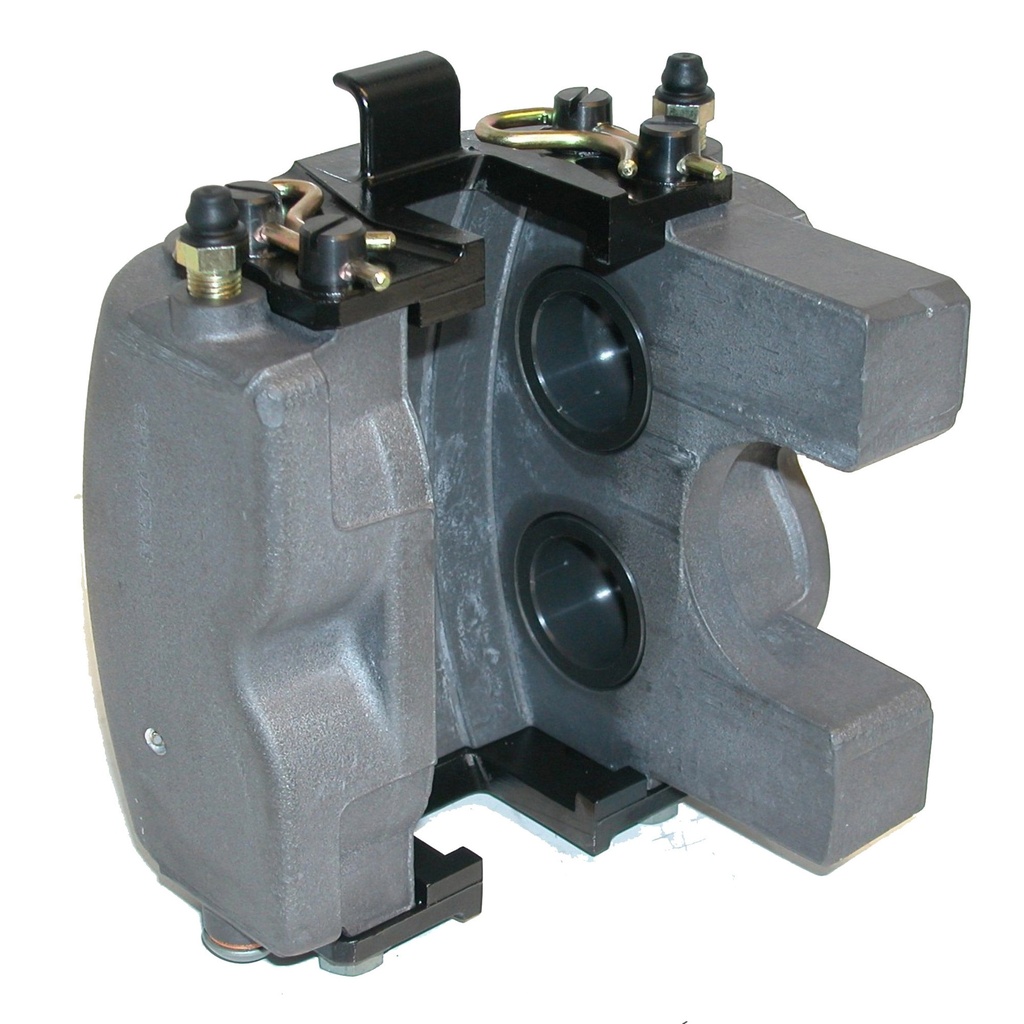

The CP2270 range of aluminium 4 piston brake calipers from AP Racing are a closed back design with blank lug mounting. The calipers feature aluminium alloy pistons and high temperature seals making them suitable for Motorsport use. They are ideal for historic race / rally cars as they are able to fit under 13" diameter wheels.
- Ideal for classic race / rally use
- Designed to fit under 13" wheels
- Aluminium alloy pistons with high temperature seals
Caliper Specifications:
| Min Disc Dia | 260mm |
| Max Disc Dia | 302mm |
| Disc Thickness | 28mm |
| Piston Dia | 41.3mm x 4 |
| Piston Area | 53.8 cm3 |
| Inlet Port | 3/8" UNF |
| Mount Type | Blank Lug |
A wide range of pad compounds are available to fit the AP Racing CP2270 caliper from popular brands, see our Motorsport brake pads category.
Calipers are handed and sold individually.
